Precision and durability in modern manufacturing are critical in making quality parts of the mechanism. The spline rolling machine is one of the most significant pieces of machinery in the development of the correct profile of the shaft. The industries which have to have a consistent supply of power transmission systems can rely on high-technology equipment supplied by a trusted Spline Rolling Machine Manufacturer to ensure the same quality and performance.
Learning about splines and their significance.
Splines are marks or grooves cut on a shaft that assist in transferring the rotational power amongst mechanical parts. They are well applied in car systems, machinery, and construction.
Smooth shafts have lower load distribution, lower alignment, and lesser resistance to slipping when compared with the splined shafts. This renders them to be used in applications that demand high stability and strength.

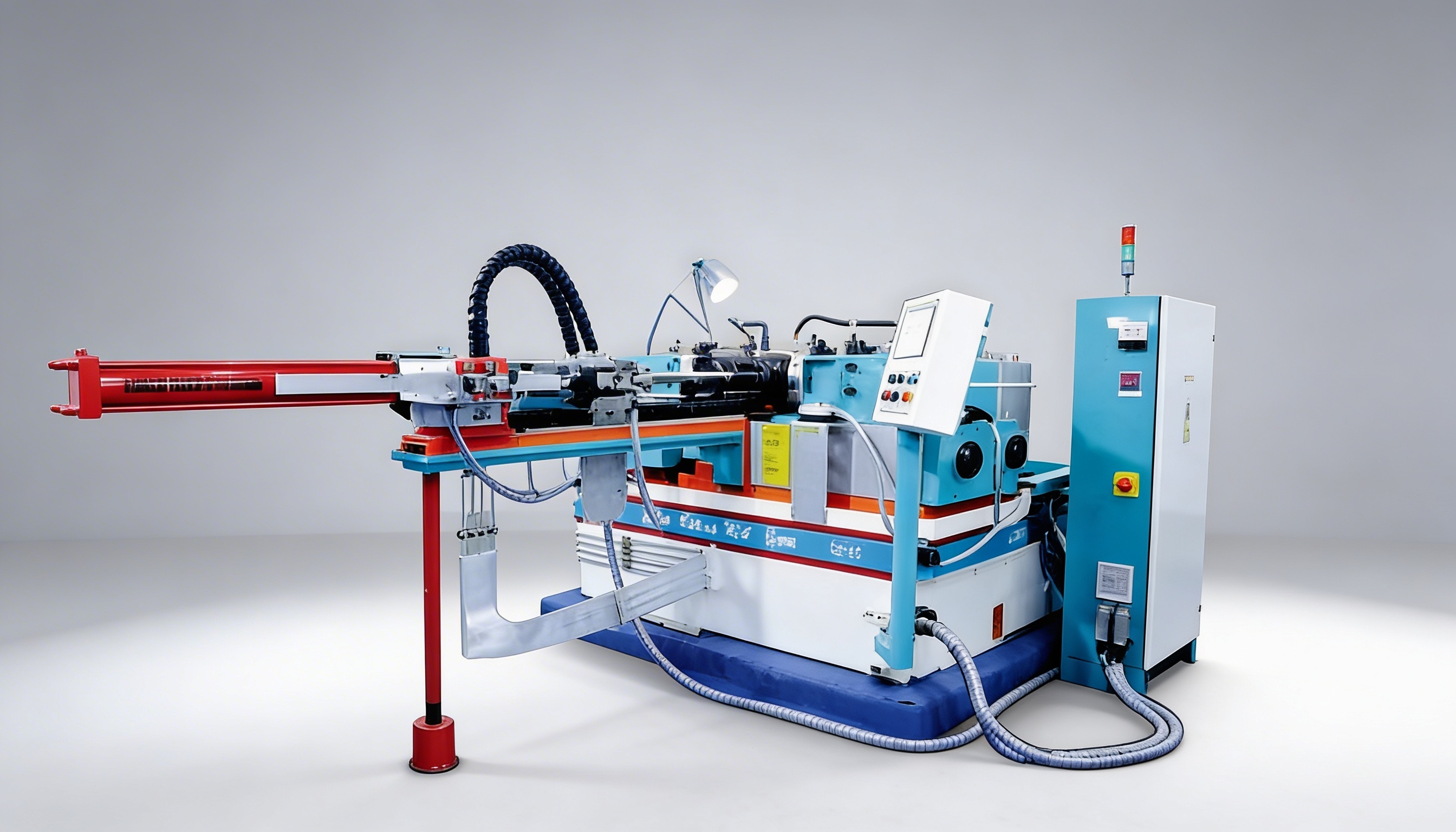

Understanding a spline rolling machine
A spline rolling machine is a unique piece of metal-forming equipment that is used to roll metal cylindrical shafts into splines by subjecting them to pressure-induced deformation. It does not cut but reforms the surface with hardened dies or rollers.
A Spline Rack Rolling Machine is also applied in the production of straight splines and rack profiles at all demand levels with uniform accuracy and surface quality in most production units.
The process of a spline rolling machine.
The machine is based on cold forming. The shaft rotates through the workpiece between rolling dies; controlled pressure is applied on the workpiece.
The dies rotate on the surface, thus creating the spline profile. The original metal structure remains the same, as there is no loss of material in the rolling process.
What are the types of spline rolling machines?
Spline rolling machines come in different types depending on the production requirements:
Flat die machines
- Flat die machines
- Round die machines
- CNC-controlled machines
- Rack-type machines
CNC models tend to be used in large-scale production because of their precision, automation, and repeatability.
What are the main components of a spline rolling machine?
The spline rolling machine consists of a number of major components:
The presence of all these components enables the stabilization of the operation and the stable construction of the spline.
What are the benefits of spline rolling technology?
Spline rolling technology has a number of benefits over the other machining processes:
- Increased mechanical strength
- Improved fatigue resistance
These are the benefits that spline rolling technology has in the field of mass production.
There are things to consider prior to purchase.
When buyers are buying a spline rolling machine, they need to consider the technical as well as financial factors. The Spline Rolling Machine price is one of the factors that are significant and varies with the size of the machine, its level of automation, and the brand value.
There are also other factors that are considered, such as production capacity, supply of spare parts, service provision, and machine durability.
Comparison Table: Spline Rolling vs. Other Methods
| Feature |
Spline Rolling |
Milling/Cutting |
Grinding |
| Material Removal |
No |
Yes |
Yes |
| Surface Finish |
Excellent |
Moderate |
High |
| Production Speed |
High |
Medium |
Low |
| Strength of Spline |
Very High |
Moderate |
High |
| Tool Wear |
Low |
Medium |
High |
| Cost Efficiency |
High |
Moderate |
Low |
Mention some industrial applications of spline rolling machines.
Spline rolling machines have many applications in various industries, and these include:
Transmission systems in automobiles.
- Automotive transmission systems
- Agricultural equipment
- Industrial gearboxes
- Construction machinery
- Aerospace components
- Heavy-duty motors
A good spline rolling machine manufacturer would always have many companies willing to do business with it so that the machine meets the industry standards.
Maintenance and Safety Tips
Frequent inspection and servicing is needed to ensure easy running of the machines. Rolling dies should be cleaned, lubrication systems need to be inspected, and hydraulic components ought to be checked.
Maintenance and servicing costs are also to be noted when the spline rolling machine price is assessed. Workplace risks are minimized with the aid of proper safety training and protective equipment.
Frequently Asked Questions (FAQs)
1. What is the application of a spline rolling machine?
It is applied to cold-deformed splines on shafts to improve strength and surface finish.
2. What is a spline rack rolling machine?
The spline rack rolling machine is generally used in the production of precise straight splines and rack shapes of high accuracy.
3. Are rolled splines stronger than cut splines?
Yes, the rolled splines are stronger since the metal is in a continuous form.
4. What is the choice of the right machine?
One should consider the production capacity, shaft size, automation level, and after-sales services before purchasing.
5. Is spline rolling appropriate in small workshops?
They have small and semi-automatic machines that can be manufactured through small-scale production.
Conclusion
A spline rolling machine is a highly required machine in the production of quality splined shafts that are used in the current industries. Its cold process is more beneficial since it is stronger, more accurate, and longer-lasting than the normal machining process.
The manufacturers can improve the efficiency of production and the quality of the products in the competitive market by understanding the working process, advantages, and selection criteria of the machine. If you are looking for high-quality spline rolling machines, HTMT is just the platform for you. For more info, contact us today .
